The 320L Diesel Concrete Mixer with Hydraulic Lift delivers efficient and reliable concrete mixing for off grid construction sites, powered by a durable diesel engine that ensures consistent performance. The hydraulic lift system allows easy material loading and reduces manual handling, while the robust design improves durability in demanding environments. Large wheels enhance mobility and allow smooth movement around the work site, making this mixer ideal for projects that require dependable and portable concrete mixing.

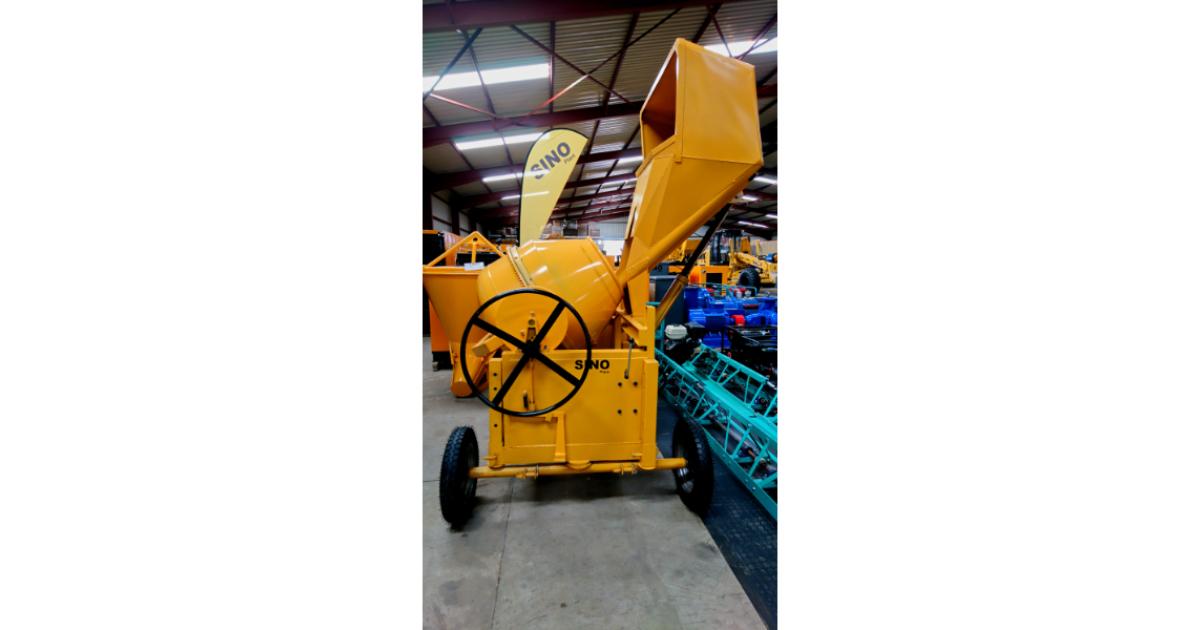

Concrete Mixer 320L Diesel with Hydraulic Lift
R87 975,00 ex. VAT R101 171,25 inc. VAT
Product Code: MIX0055
Request a quote for "Concrete Mixer 320L Diesel with Hydraulic Lift"
* indicates a required field
Free Call Back for "Concrete Mixer 320L Diesel with Hydraulic Lift"
* indicates a required field
After Sales Support for "Concrete Mixer 320L Diesel with Hydraulic Lift"
* indicates a required field
Operators Manual for "Concrete Mixer 320L Diesel with Hydraulic Lift"
* indicates a required field
Spares For "Concrete Mixer 320L Diesel with Hydraulic Lift"
* indicates a required field
Request a demo for "Concrete Mixer 320L Diesel with Hydraulic Lift"
* indicates a required field
Discharge Capacity: 320 L
Load Capacity: 200 L
Productivity: 7.2 m³ per hour
Drum Speed: 22 RPM
Drum Thickness: 5 mm
Maximum Aggregate Size: 60 mm
Hydraulic Pressure: 16 MPa
Hydraulic Flow Rate: 63 L per min
Machine Weight: 1050 kg

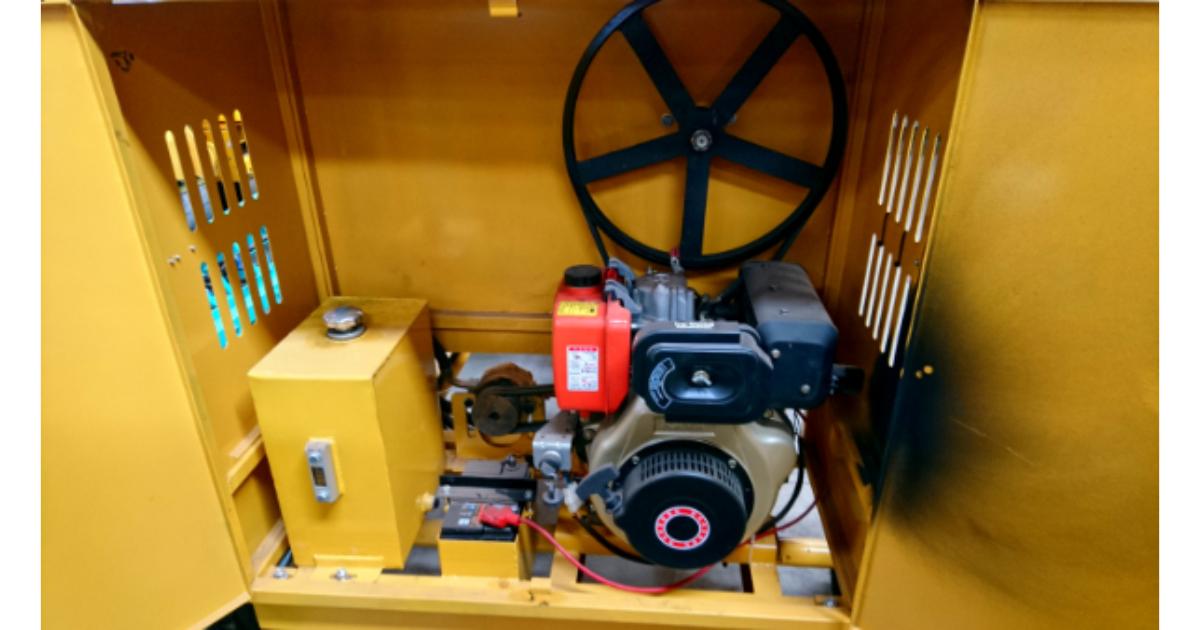

ENGINE
Engine Model: FM186F
Engine Type: Diesel
Rated Output: 5.7 kW
Rated Speed: 3000 RPM
Displacement: 406 cc
DIMENSIONS
Operating Length: 2150 mm
Operating Width: 1400 mm
Operating Height: 1650 mm
Please check stock availability prior to visiting your branch. Special orders might exclude interbranch transfer costs, please confirm first. Pictures are for illustrative purposes only. Specifications are subject to change without prior notice.
