560kg Diesel Concrete Drum Mixer with Hydraulic Skip

R149 750 ex. VAT R172 213 inc. VAT

Select An Option:

Request A Quote
Free Call Back
After Sales Support
Operators Manual
Spares
Request A Demo
Terms & Conditions Apply

Please check stock availability prior to visiting your branch.

Special orders might exclude interbranch transfer costs, please confirm first.

Pictures are for illustrative purposes only. Specifications are subject to change without prior notice.

Product Description

Drum Capacity: 560L
Load Capacity: 560kg
Mixing Capacity: 350L
Drum Speed: 15RPM
Drum Thickness: 6mm
Max Aggregate: 60mm
Productivity: 14m³/h
Skip Capacity: 390L
Weight: 1000kg

Dimensions

Operating Length: 3000mm
Operating Width: 2200mm
Operating Height: 2950mm

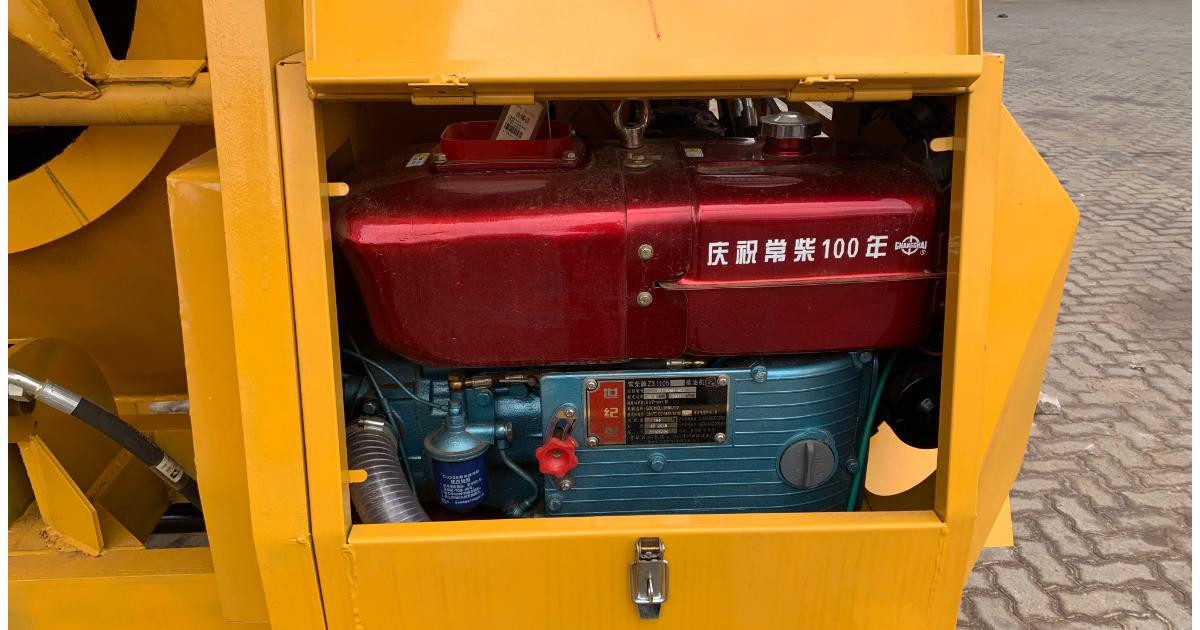

Motor

Model: S1100
Type: Diesel
Rated Output: 13.34kW
Rated Motor Speed: 2200RPM

Other

Hydraulic Lifted Skip
Built-In Water Pump
4x Stabilizing Legs

SKU: 560-kg-diesel-concrete-mixer-with-hydraulic-lift Category:
